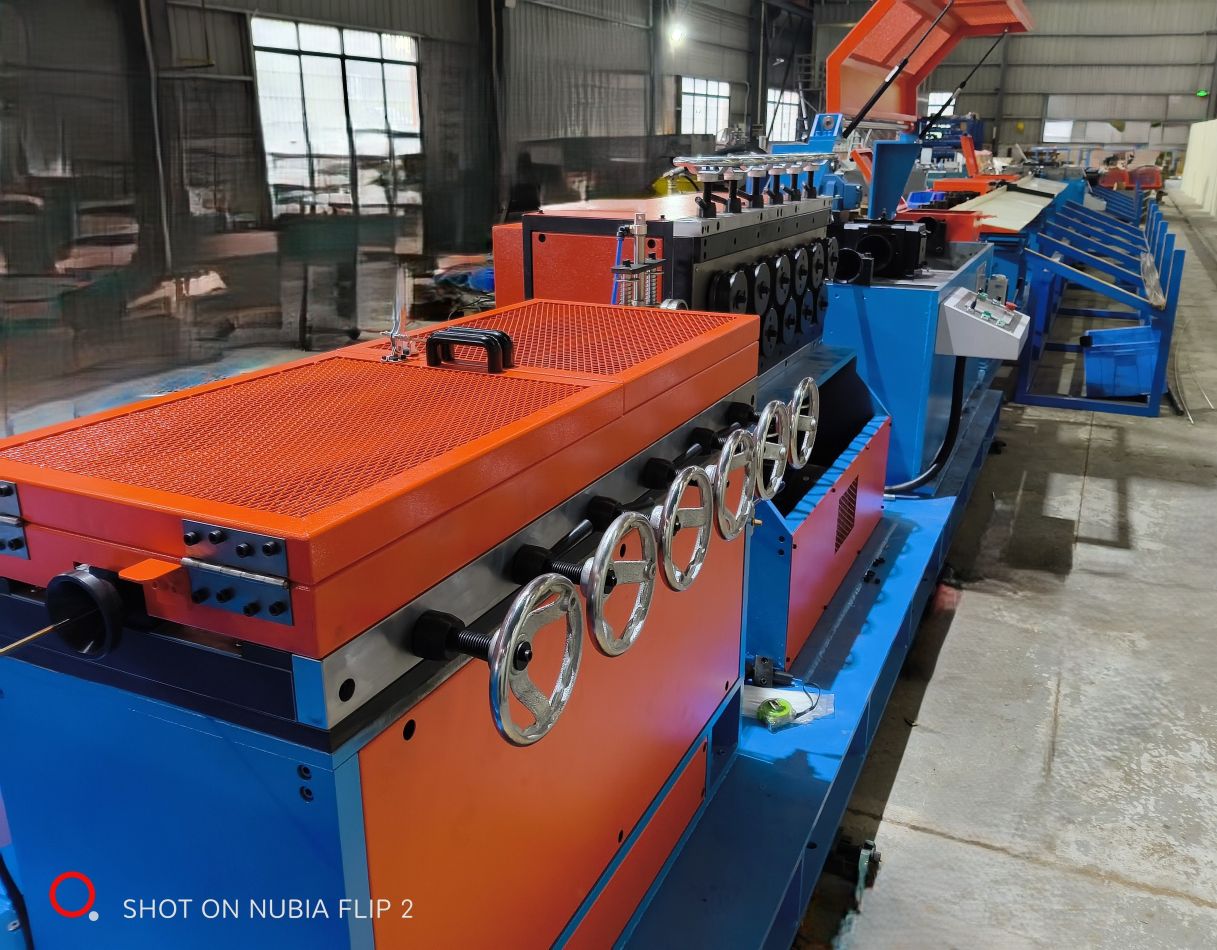

LB 6 Properties and specifications of multi-processes, combined and continuous wire drawing machinery：

1. Processed materials: ferrous and non-ferrous metals like steel, copper alloy and Aluminum alloy;

2.    The rated pulling force：60 KN（6 tons）

3.    Wire running speed：20、30、40、50、60 m/min

4.    Max wire coil weight：800 kg

5.    Finished bar size：round bar ∅6～∅16 mm，square bar 14 x 14 mm，hexagon bar 16 x 16 mm

6.    Finished bar length：2~6 m

7.    Finished bar straightness：＜0.5 mm/m

8.    Finished bar finish roughness：Ra 1.6~0.8 um

9.    Key motor power：90 KW

10.     Total power of the whole line：158 KW

11.     Number of phases：3

12.     Power frequency：50 Hz

13.     Power voltage：380 V

14.     Total weight of the whole line：23 Tons

15.     Max covered area（Excluding electrical control cabinet）：around 28000*2000*1320 mm

16.     Environmental temperature：0°C~40°C

17.     Environmental humidity：

a)    50% RH when the temperature is ＜35°C

b)    90% RH when the temperature is＜20°C

18.      Environmental medium requirement：no explosive materials, no corrosive material and no harmful gas and dust for electrical insulation of electrical wires

19.      Altitude that it can run under：≤1000 m

Widely used to straighten the roiled metal wire and reduce its section size to be smaller to make the straight rods. It produces the metal rods for machining industry as the raw material rods.
