LB 4 Properties and specifications of multi-processes, combined and continuous wire drawing machinery：

1. Processed materials: ferrous and non-ferrous metals like steel, copper alloy and Aluminum alloy;

2.    The rated pulling force：40 KN（4 tons）

3.    Wire running speed：20、30、40、50、60 m/min

4.    Max wire coil weight：800 kg

5.    Finished bar size：round bar ∅4～∅12 mm，square bar 10 x 10 mm，hexagon bar 12 x 12 mm

6.    Finished bar length：2~4 m +/-5 mm

7.    Finished bar straightness：＜0.5 mm/m

8.    Finished bar finish roughness：Ra 1.6~0.8 um

9.    Key motor power：45 KW

10.     Total power of the whole line：90 KW

11.     Number of phases：3

12.     Power frequency：50 Hz

13.     Power voltage：380 V

14.     Total weight of the whole line：18 Tons

15.     Max covered area（Excluding electrical control cabinet）：around 21000*1530*1320 mm

16.     Environmental temperature：0°C~40°C

17.     Environmental humidity：

a)    50% RH when the temperature is ＜35°C

b)    90% RH when the temperature is＜20°C

18.      Environmental medium requirement：no explosive materials, no corrosive material and no harmful gas and dust for electrical insulation of electrical wires

19.      Altitude that it can run under：≤1000 m

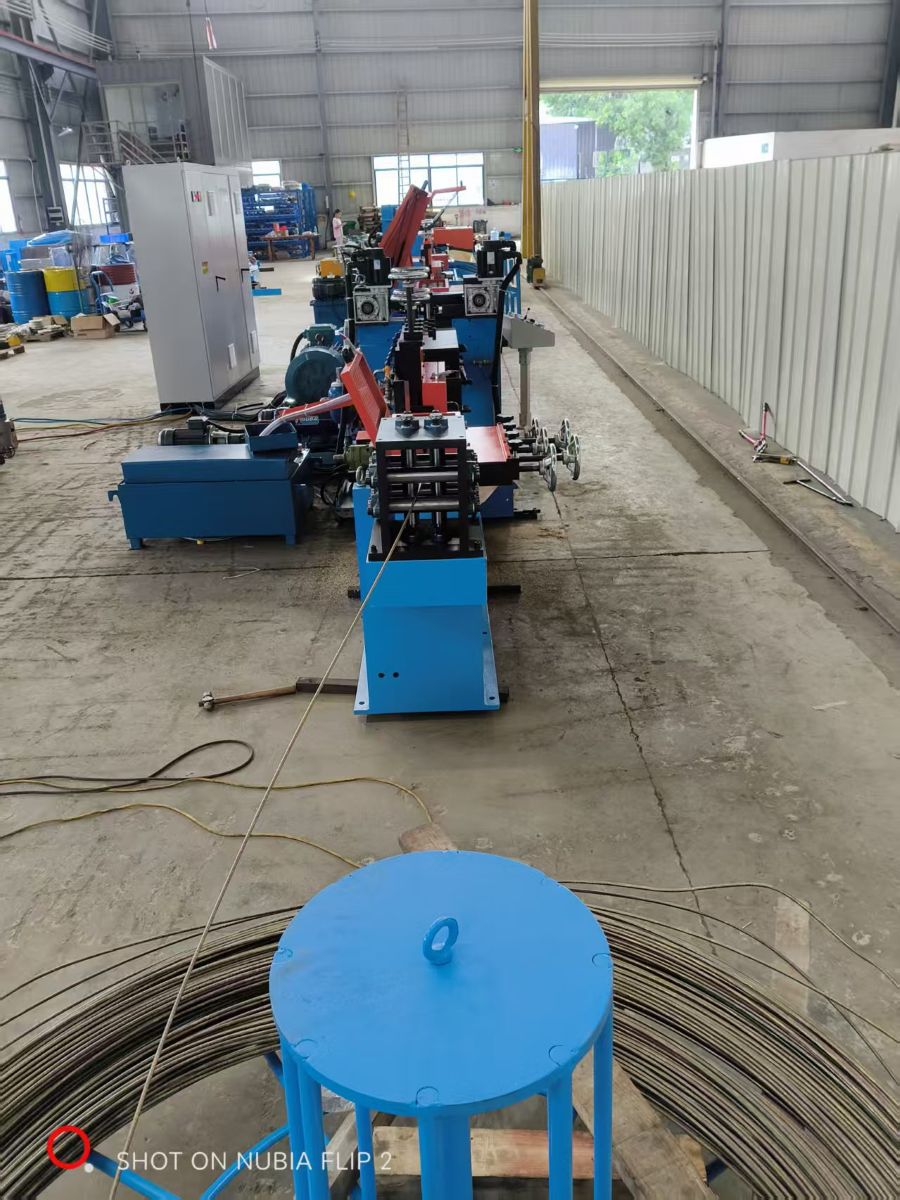

It is applied to straighten coiled metal wire and reduce the section size to produce metal rods for machining industry.

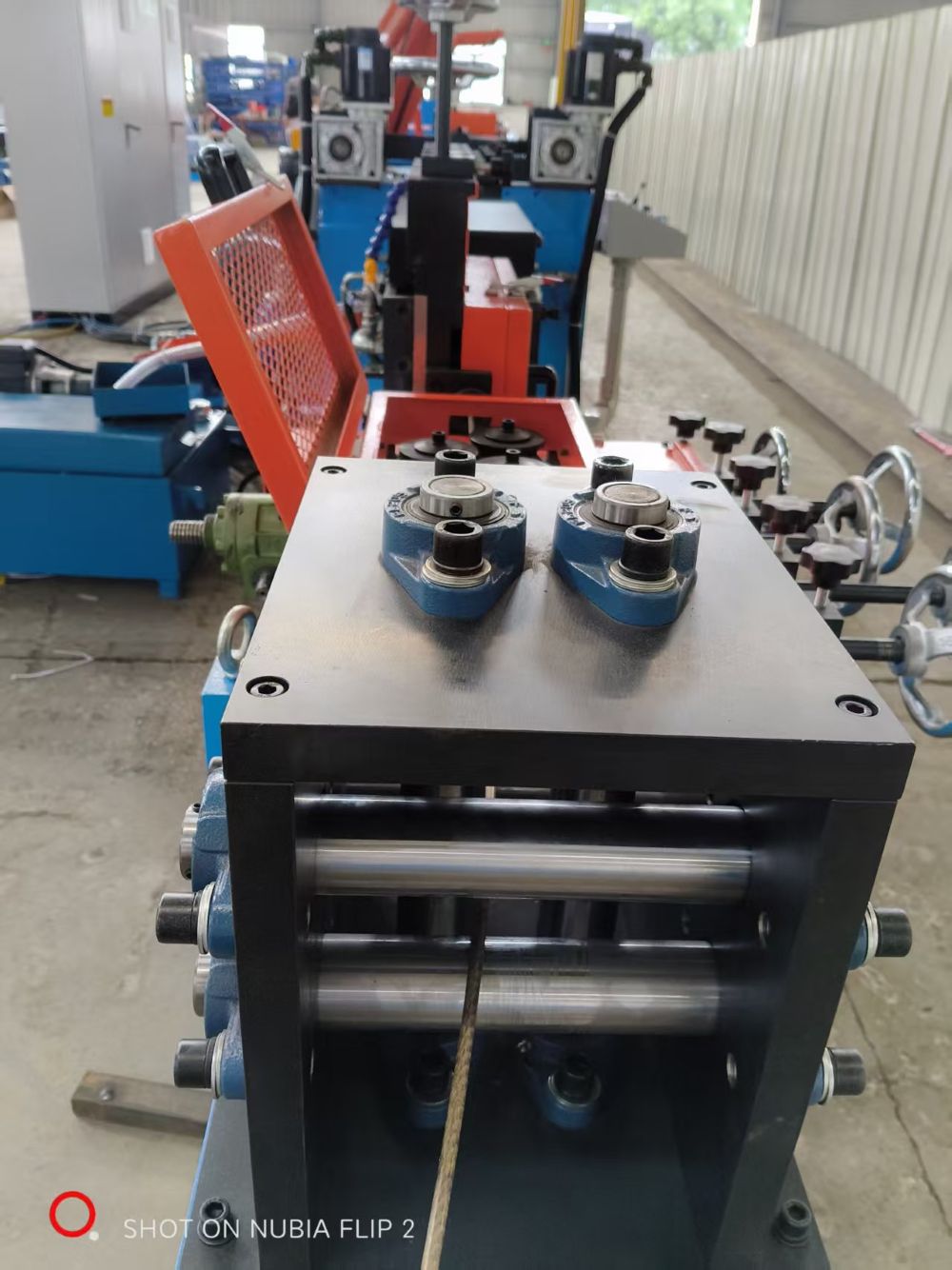

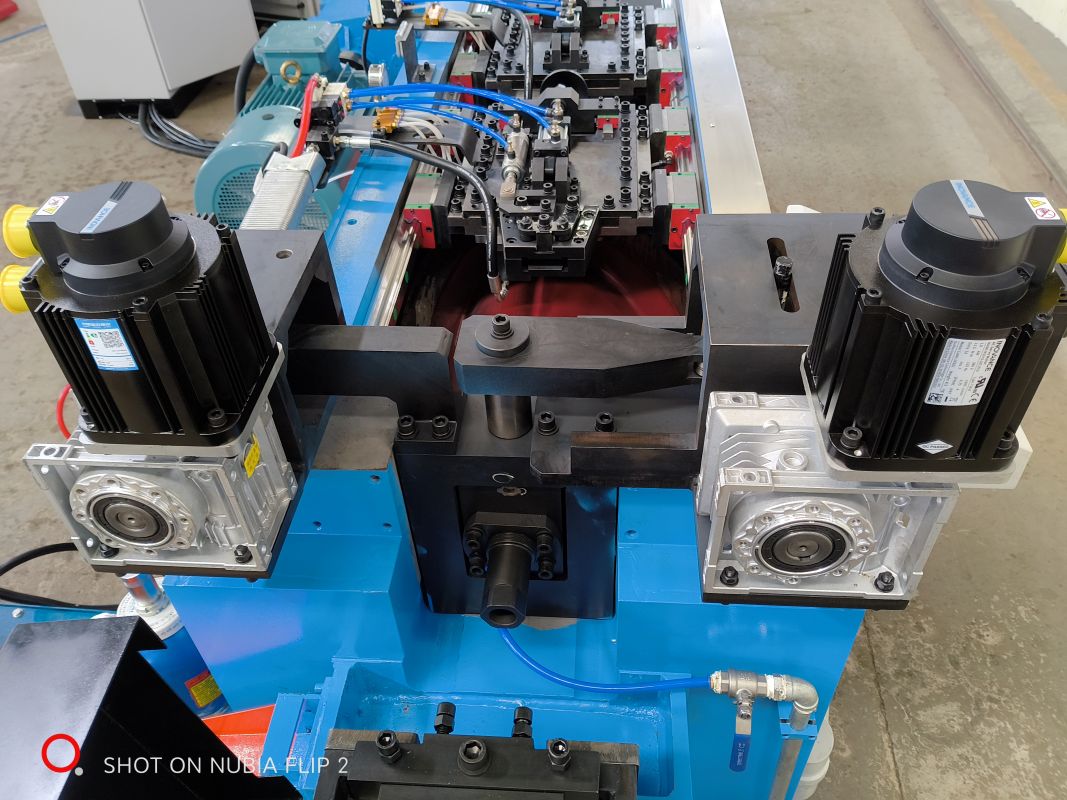

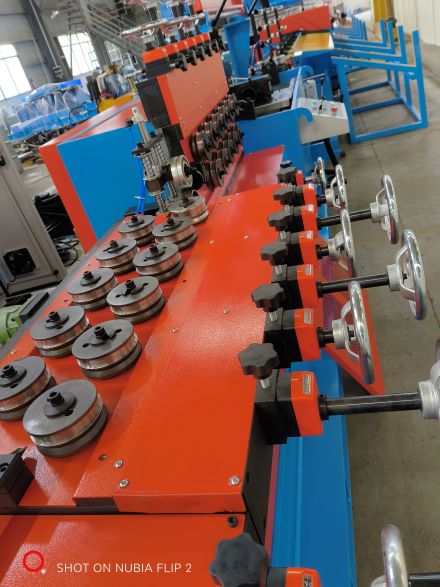

This machinery includes the processes of wire guiding, wire towing, pre-straightening, peeling, cold die drawing, continuous pulling of cam mechanical system, fine straightening, length measuring, hydraulic cutting off, rod pushing, rod collection, polishing, rod collection.
